Dedicated production systems

Equipment built around the material.

Seven equipment modules cover raw-material preparation, extrusion, printing, converting, assembly and closed-loop waste recovery.

Integrated by applicationIndividual machines or complete-line configurations are available. Final configuration, compliance and output depend on project engineering.

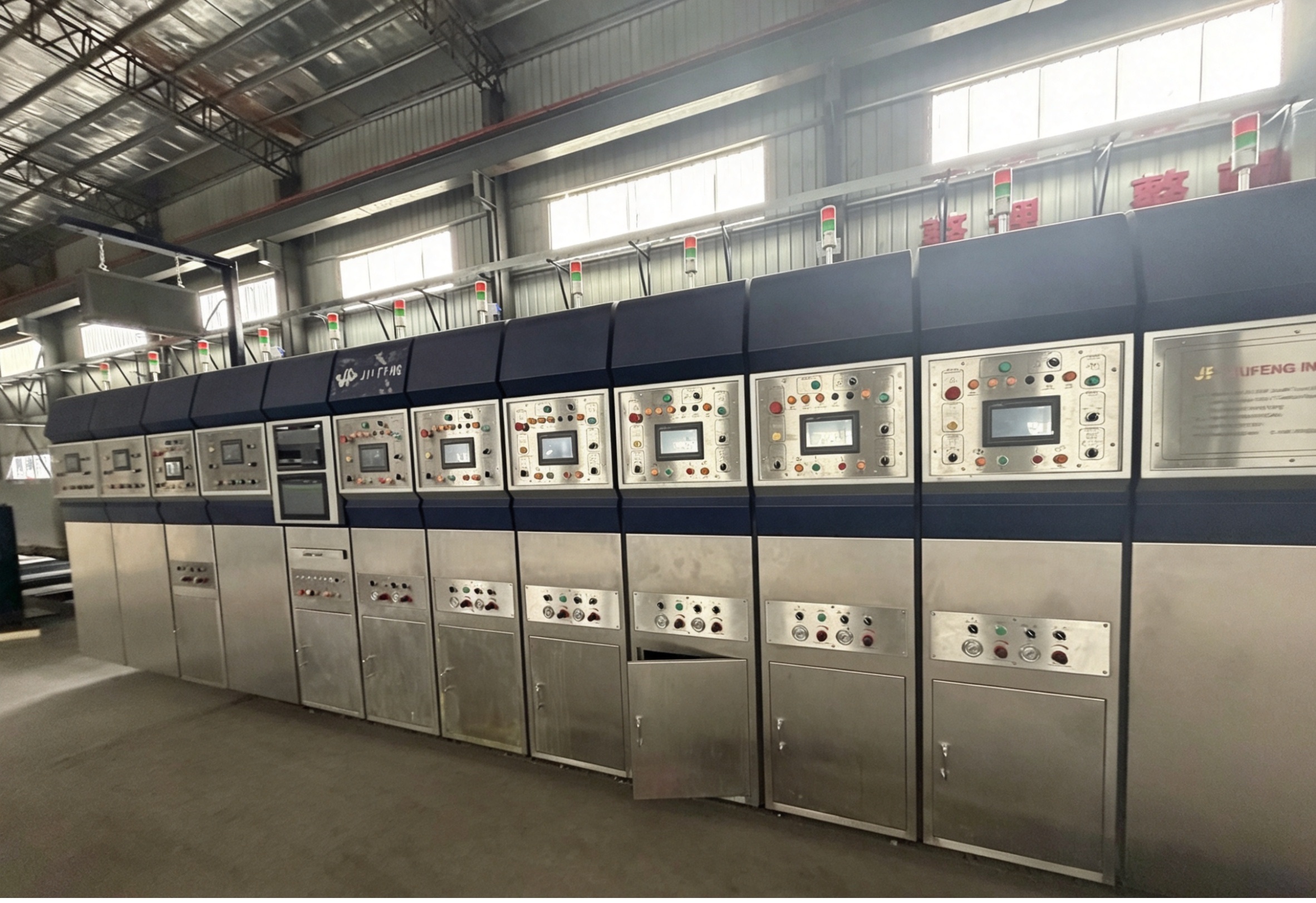

PP corrugated hollow sheet production equipment

Dedicated raw-material production line

  • Fully automatic mixing with adjustable ratios
  • Automatic metal-contaminant rejection
  • Uniform blending and direct connection to sheet extrusion equipment
  • Manufacturer-reference single-line capacity: 500–600 kg/h; final configuration and acceptance test required

Sheet extrusion line

  • Fully automatic sheet extrusion direction
  • Twin-screw extrusion with multilayer co-extrusion capability by configuration
  • Manufacturer-reference maximum width: 2,600 mm
  • Manufacturer-reference thickness range: 1.8–7 mm
  • Manufacturer-reference capacity: 500–700 kg/h at 3 mm; resin, profile, setup and test basis required
  • Optimized for dedicated raw material; customizable

High-definition flexographic printing line

  • Manufacturer-reference configuration: six colors plus varnish plus QR-code printing
  • Unique-code printing available by project
  • Ink adhesion, scratch and fade performance require selected ink, substrate treatment and acceptance testing
  • Registered-color printing by approved artwork and sample
  • Manufacturer-reference maximum print width: 2,800 mm
  • Manufacturer-reference maximum print length: 1,150 mm
  • Manufacturer-reference maximum resolution: 1,000 DPI; actual result depends on artwork, plate, substrate and press setup
  • Customizable

Rotary die-cutting line

  • Die-cutting efficiency and pressure uniformity require final equipment configuration
  • For production of agreed standard-box formats
  • Manufacturer-reference maximum processing width: 2,800 mm
  • Manufacturer-reference maximum processing length: 1,300 mm
  • Customizable

Flatbed die-cutting line

  • Supports complex box structures
  • Accurate creasing and clean cut edges
  • Lower-cost dies and fast changeover
  • For premium irregular boxes, short runs, multiple SKUs and frequent job changes
  • Customizable

Automatic stitching, gluing and strapping line

  • Integrated automatic feeding, folding correction, gluing, stitching, counting and stacking
  • One-touch switching between stitching and gluing
  • Adhesive selection and any food-contact suitability require project-specific documentation
  • Throughput improvement depends on box, setup, comparator and acceptance test; no universal multiplier is claimed
  • Stitch position and glue-line requirements are confirmed by project
  • Automatic fault-detection functions require final equipment configuration confirmation
  • Customizable

Waste recycling line

  • Melts die-cut waste and recovered sheet or boxes into raw-material pellets
  • Reprocessed pellets can be fed directly into sheet extrusion
  • Customizable

Verified value / Pilot Validation

Make the acceptance test part of the equipment offer.

Factory specifications are useful for initial selection, but throughput, print result and finished-box output become credible when the resin, sheet, artwork and geometry are part of the test.

01

Integrated process path

The Dongguan platform covers material preparation, extrusion, printing, converting, assembly and recovery equipment.

How we validateMap the required inputs and outputs, then define the factory acceptance test for the selected modules.

02

Throughput by configuration

Output depends on resin, thickness, geometry, settings and operator method.

How we validateRun the agreed article and compare measured output, waste and quality with the written acceptance plan.

03

Print and converting result

Machine format is only the starting point; artwork, plates, substrate treatment and tool setup shape the finished result.

How we validateApprove a representative printed and converted sample before final acceptance.

Manufacturer reference layer

Existing equipment dimensions and output figures remain attributed manufacturer references. No comparative efficiency multiplier is restored.

Scope boundary: BEE ARMOR North America is the market-facing name. Manufacturing and written specifications are provided by BEE ARMOR (Guangdong) Plastics Co., Ltd. in Dongguan. Final material, structure, performance, compliance, availability and commercial terms are confirmed in writing for the actual project.
